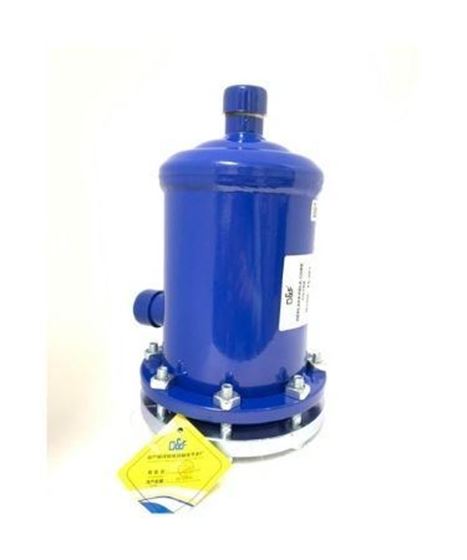

O&F FILTER SHELL 1 1/8" FE-489 (1 CORE)
- The inlet & outlet are made by stable carbon steel
- The filter is standard assembled with 2 pieces of metel filter screens
- When you use the filter in the liquid line, please use the filter core FJ-48A which can filter out the dirt in the system, and it also can absorb the water and acid materials.
- When you use the filther in suction line , in order to reduce the pressure drop, you are suggest to disassemble 2 pieces of metel filter screens, and you can use the filter core FRE-48 / FRE-48W which can filter out the dirt in the system, and it also can prevent the dirt to enter into the compressor for prolonging the service life.
- With the design of high-accuracy flange and modular filter core support & assembled spring, it is so easy for you to replace the filter core.
- The internal shelf body wall is dealt with nickel plating to prevent the rust against the water.
- There is a access hole for measuring the pressure drop & charging function
- The design pressure : 2.9MPa
- Applicative refrigerant : R134a, R22, R407c, R404a, R507a
